Trinnov AMETHYST

Product Details

RRP: £8,595.00

Your price: N/A

Mfr. Part #: AMETHYST

Our Part #: TRIAMETHYST

Login to see stock.

Description

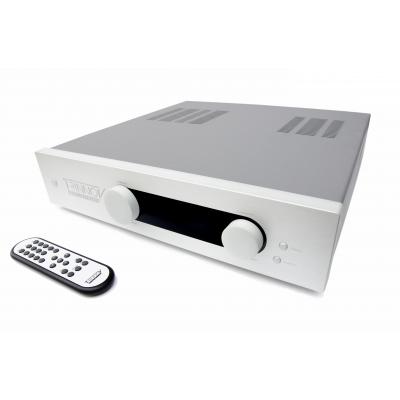

AMETHYST - 11 Source High-End Hi-Fi Pre-Amplifier

A remarkable combination of advanced technologies, the Amethyst is Trinnov’s high-end stereo flagship.

It includes an 11-source preamplifier with built-in Speaker/Room Optimizer, Trinnov’s innovative HybriD Phono Preamp, a Network Renderer, a 24 bit/192kHz DA Converter and a 2-way intelligent active crossover engine.

The Amethyst also features built-in Wifi connectivity for simplified operations. It is the perfect centerpiece of any traditional or modern Hifi Installation.

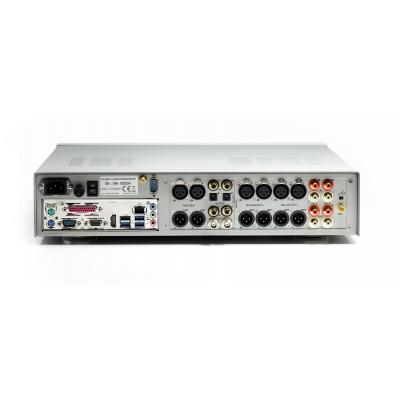

> 2 balanced analog sources on XLR connectors
> 1 single-ended analog source on RCA connectors
> 1 single-ended analog source on RCA connectors switchable to Phono
> 2 AES/EBU digital sources on XLR connectors
> 2 Coaxial S/PDIF digital sources on RCA connectors
> 2 Optical S/PDIF digital sources on TosLink connectors
> 1 High-Resolution UPnP Network Source (Ethernet, WiFi)

AD/DA CONVERTERS

> A/D signal-to-noise ratio: 119 dB (A-weighted)
> D/A signal-to-noise ratio: 118 dB (A-weighted)
> High Performance jitter attenuation (better than 50dB above 100Hz)
> Supported A/D sampling rates: 44.1 / 48 / 88,2 / 96 kHz
> Supported D/A sampling rates: 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kHz
> Word Clock Input/Output

EASY SETUP

> Insert the Amethyst between your sources and the amplifiers, and connect the microphone
> Run the step-by-step calibration wizard
> Select one of the 5 automatically generated compensations
> Change the target curves and other optimization parameters
> Store up to 29 user-defined presets

ACTIVE CROSSOVERS / BI-AMPLIFICATION

> 2-way intelligent active crossover
> Available filters: Linkwitz–Riley, Bessel, Butterworth of 2nd, 3rd and 4th order • Measurement and alignment at the listening poin

OUTPUT FORMATS

> 1x stereo
> 2x stereo
> bi-amp
> 2.1
> 2.2
> LCR
> LCRS
> 3.1
> quad

POWER

Dedicated linear power supply with toroidal transformer for the analog audio circuit

REMOTE CONTROL

> Builtin WiFi Access Point and Client
> IR remote
> VNC: remote control through the network from a tablet, smartphone or laptop
> Gigabit ethernet: Crestron module available in the download section
> Telnet and RS-232 Protocol

Read more

AMETHYST - 11 Source High-End Hi-Fi Pre-Amplifier

A remarkable combination of advanced technologies, the Amethyst is Trinnov’s high-end stereo flagship.

It includes an 11-source preamplifier with built-in Speaker/Room Optimizer, Trinnov’s innovative HybriD Phono Preamp, a Network Renderer, a 24 bit/192kHz DA Converter and a 2-way intelligent active crossover engine.

The Amethyst also features built-in Wifi connectivity for simplified operations. It is the perfect centerpiece of any traditional or modern Hifi Installation.

> 2 balanced analog sources on XLR connectors
> 1 single-ended analog source on RCA connectors
> 1 single-ended analog source on RCA connectors switchable to Phono
> 2 AES/EBU digital sources on XLR connectors
> 2 Coaxial S/PDIF digital sources on RCA connectors
> 2 Optical S/PDIF digital sources on TosLink connectors
> 1 High-Resolution UPnP Network Source (Ethernet, WiFi)

AD/DA CONVERTERS

> A/D signal-to-noise ratio: 119 dB (A-weighted)
> D/A signal-to-noise ratio: 118 dB (A-weighted)
> High Performance jitter attenuation (better than 50dB above 100Hz)
> Supported A/D sampling rates: 44.1 / 48 / 88,2 / 96 kHz
> Supported D/A sampling rates: 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kHz
> Word Clock Input/Output

EASY SETUP

> Insert the Amethyst between your sources and the amplifiers, and connect the microphone
> Run the step-by-step calibration wizard
> Select one of the 5 automatically generated compensations
> Change the target curves and other optimization parameters
> Store up to 29 user-defined presets

ACTIVE CROSSOVERS / BI-AMPLIFICATION

> 2-way intelligent active crossover
> Available filters: Linkwitz–Riley, Bessel, Butterworth of 2nd, 3rd and 4th order • Measurement and alignment at the listening poin

OUTPUT FORMATS

> 1x stereo
> 2x stereo
> bi-amp
> 2.1
> 2.2
> LCR
> LCRS
> 3.1
> quad

POWER

Dedicated linear power supply with toroidal transformer for the analog audio circuit

REMOTE CONTROL

> Builtin WiFi Access Point and Client
> IR remote
> VNC: remote control through the network from a tablet, smartphone or laptop
> Gigabit ethernet: Crestron module available in the download section
> Telnet and RS-232 Protocol

Features
Rack Space2U
Dimensions (L x W x H)445 x 442 x 103 mm
Weight10 Kg
Warranty5 Year
