RRP: £491.00
Your Price: N/A
Mfr. Part #: 10-210486-22
Our Part #: RTIKX2W
Description

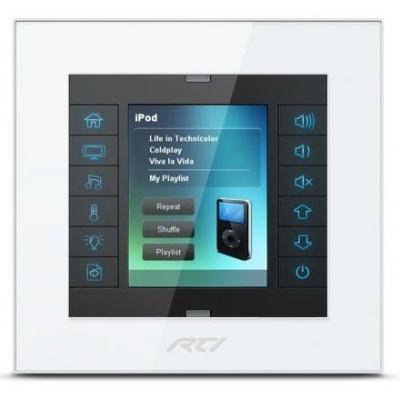

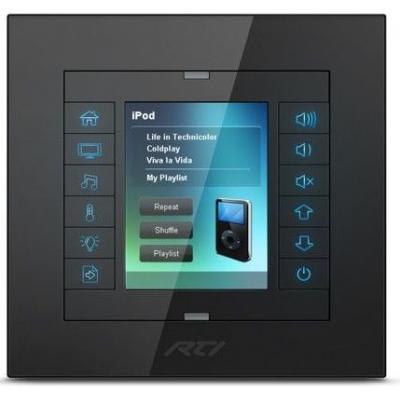

The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation.
The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation.
| Features | |
|---|---|
| Committed To Custom | Yes |
| Diagonal Screen Size (inch) | 2.8 |
| Hard Buttons | 12 |
| Communication/Intercom | None |
| Communication Type | RS485 & WiFi |
| Programmable Touch Screen | Yes |
| Built-In Processor | No |
| Resolution | 240 x 320 |
| Cover Art | No |
| Custom Sliders, Switch & Gauge | No |
| Direct Frame Access | Yes |
| Frame Swipe | No |
| Lasershark | Yes |
| MJPEG Stream | No |
| Open URL | No |
| Overlap Button | No |
| RTSP H.264 Baseline | No |
| RTSP Stream/Page | No |
| SIP & VOIP | No |
| Static 1-Way List | No |
| Viewports Horizontal/Vertical | No |
| Web Browser | No |
| Dimensions (L x W x H) | 31 x 117 x 112 mm |
| Warranty | 3 Year |
